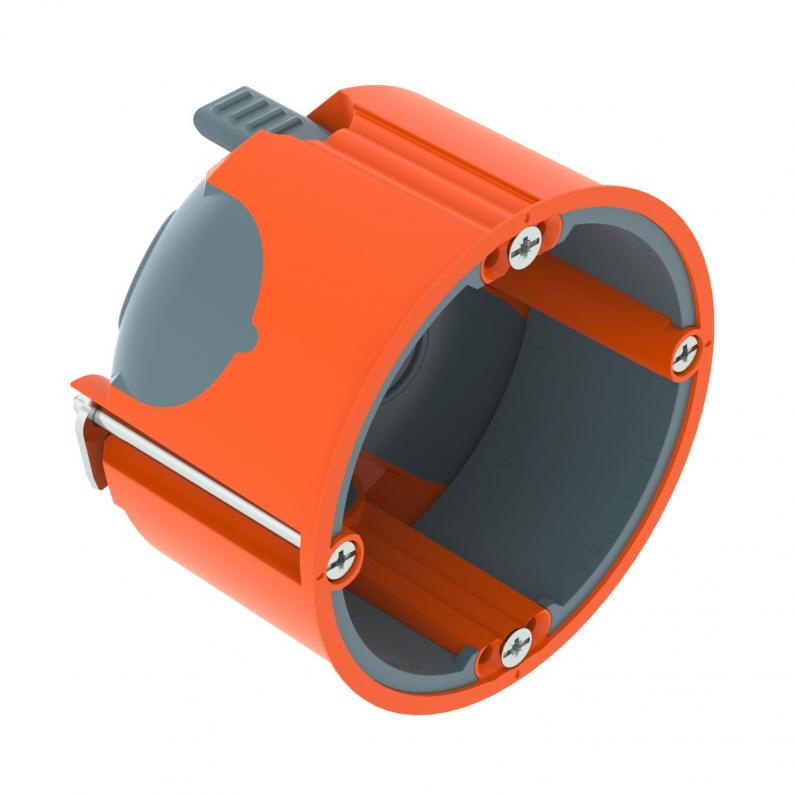

HG 47-LF fire protection cavity wall socket, air-tight
Type HG 47-LF
|Item no. 7204320
|EAN 4012197384500
Item no. / Type
7204320 / HG 47-LF
Smallest selling unit: 10 Bucată
10Bucată
Bucată
Description
Fire protection cavity wall socket to close off electrical installation openings in fire-resistant walls.
• Device socket, flat
• 2 x 3 screw domes
• Air-tight connection with other device sockets via connection nozzle, type ZH 11-V
• Max. 4 entries approved for cables with diameter ≤ 11 mm
• 2 M20/M25 entries (cable diameter ≤ 14 mm)
Delivery accessories: 5 x connection nozzles, type ZH 11-V
EI120/EI90 fire resistance (fire-resistant)
Approved in all installation zones according to DIN 18015-3, DIN 18040-2, DIN EN 17210.
• Device socket, flat
• 2 x 3 screw domes
• Air-tight connection with other device sockets via connection nozzle, type ZH 11-V
• Max. 4 entries approved for cables with diameter ≤ 11 mm
• 2 M20/M25 entries (cable diameter ≤ 14 mm)
Delivery accessories: 5 x connection nozzles, type ZH 11-V
EI120/EI90 fire resistance (fire-resistant)
Approved in all installation zones according to DIN 18015-3, DIN 18040-2, DIN EN 17210.
Technical data
Date tehnice

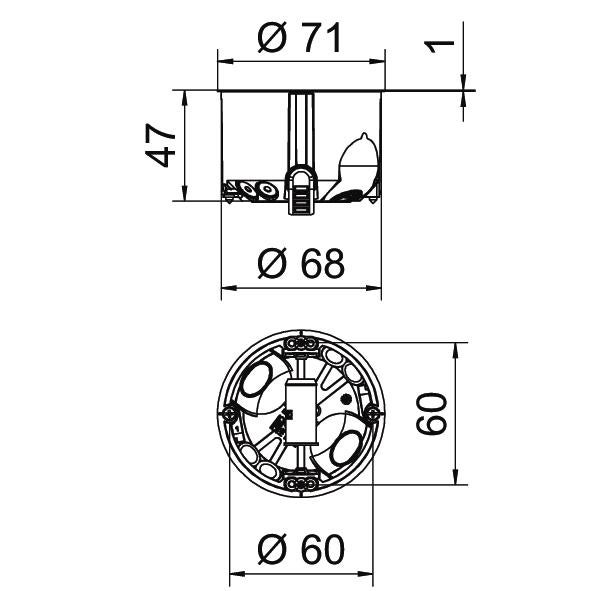

| Dimensiune | Ø68mm, H47mm |
|---|---|
| Material | Polipropilenă/elastomer termoplastic |
| Culoare | portocaliu / gri |
page.product.environmentalData.environmentalData
| Amprenta CO2 (GWP) de la leagăn la poartă | 0,1166 kg CO2e / 1 Bucată |
|---|
