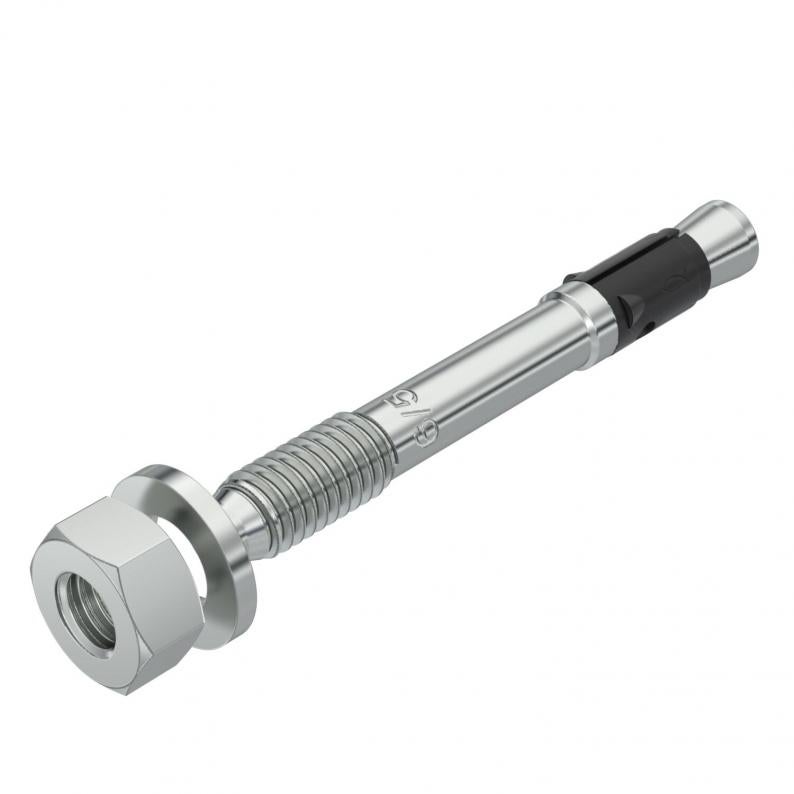

Nail tie with thread G

Type FNAII 6x30M6/5
|
Item no. 3499020
|
EAN 4012197507367
Item no. / Type

Smallest selling unit: 100 Bucată

Bucată

Description

Nail tie with thread for the anchoring of, for example, fire protective products, mounting rails, metal clips, substructures made of wood and metal, etc. on walls and ceilings from cracked concrete in indoor and outdoor areas. To knock in with a hammer. When loads occur the nail tie spreads out automatically and anchors itself in the drill hole. Rustproof and highly corrosion-resistant. Fire-safety tested, fire protection class R 120 according to European Technical Assessment ETA-06/0175.
  • Communautés Européennes, Declaraţia de conformitate a Comunităţii Europene conform directivelor Comunităţii Europenedie ungemuffte Seite

Technical data

Dimensiuni

Lungime55 mm
Dimensiune L55 mm

Date tehnice

Filet metric6
FiletM6
Autofiletantnu
Agremente valabileda
Dispozitiv de fixarealtele
Forta de prindere10 mm
VariantăImpact
Diametru de găurire min.6 mm
Adâncimea găurii45 mm
Dimensiune6x50
Suprafaţăzincat galvanic
MaterialOţel
Culoarezinc
Potrivit pentru material de construcțieGresie calcaroasă, Beton, Piatră naturală
Tip de montaj diblu, ancorăMontaj prin înfigere

Downloads

0 selected

Specificații (1)
Declarații (2)
Certificate (1)
Imagini ale articolului (2)

Variants

FNAII 6x30M6/5A4
Item no.
3499024
Filet
M6
FNAII 6x30M6/5A5
Item no.
3499026
Filet
M6
FNAII 6x30M6/5
Item no.
3499020
Filet
M6
